DESCRIPTION

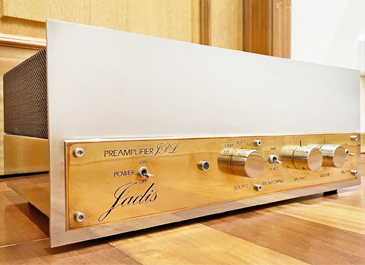

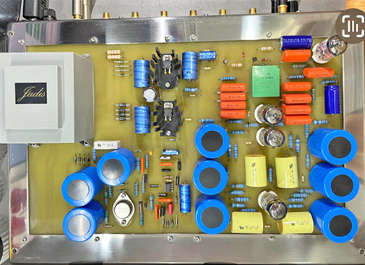

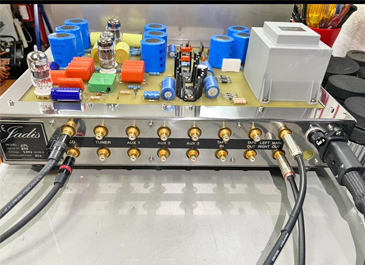

This tube preamplifier is made up of three 12AX7 double triodes. The gain, of about 25 dB, is supplied by the first two tubes mounted in series. The last tube is used as a cathode follower, which allows the use of a long cable without the disadvantage of a drop in the treble. There's also a dedicated CD input that uses a single 12AU7 as a buffer stage (unity gain). This input is DC-coupled to the 12AU7's grid, while the regular line inputs are AC-coupled via a 1;uF capacitor. The quality of the Jadis JPL comes from a highly selective and careful choice of passive components, and of the extremely precise manual production of Jadis circuits. Jadis products tend to be well known for the speed in comparison to other tube amplifier brands. They sound faster and yet retain their sweetness and warmth of a tube sound. Specifications: 6 Line Inputs, 2 Outputs, 1 Tape Output. Tubes:.3 x 12AX7/ECC83/7025, 1 x ECC82/12AU7. Gain: 25dB. Bandwidth -3dB: 20Hz-70kHz. Remarks: No original packaging. However, it will be safely packed.

SITE: https://www.jadis-electronics.com/

SERIAL NUMBER: 898
