DESCRIPTION

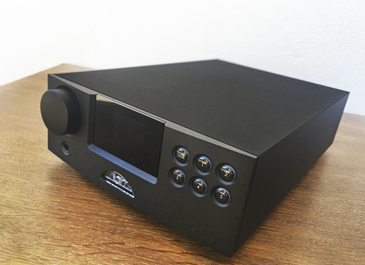

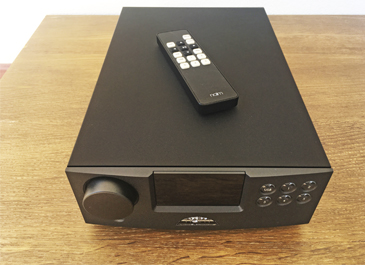

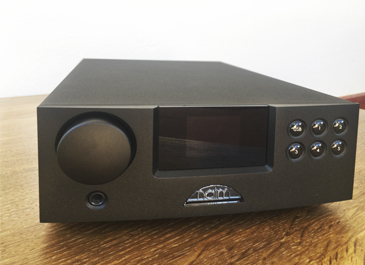

The DAC V1 is an asynchronous USB converter with multiple digital S/PDIF inputs, a precision volume control and a high-quality headphone amplifier. It still offers the same DAC technology to be found within the NDX streamer. This uses Naim-written code in a SHARC ASDP, which means the DAC-V1 provides 16-times oversampling and up to 24-bit 384 kHz resolution through its asynchronous USB connection. Zero S/PDIF Jitter design in common with the original Naim DAC. There is a hefty linear regulated power supply with discrete mains transformer windings for the digital, analogue and DAC stages, and galvanic isolation to keep digital interference out of the analogue circuitry. Specifications: (6) Digital inputs: High-speed asynchronous USB input up to 24bit/384kHz. 5 x S/PDIF inputs up to 24bit/192kHz: 1 x BNC, 2 x RCA, 2 x TOSLINK. Selectable fixed or variable analogue outputs: 4 pin DIN or RCA. Headphone (6.3mm TRS jack) output. Frequency Response: 10Hz to 20kHz +0.1dB/-0,5dB. Total Harmonic Distortion: <0.002%.

SITE: https://www.naimaudio.com/

SERIAL NUMBER: 398936
