DESCRIPTION |
|

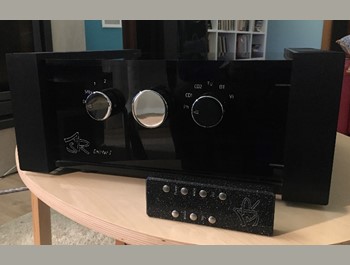

ASR Emitter I Basic version is a solid-state integrated amplifier with an external power supply equipped with 2 x 500 VA rated power transformers. Output and driver stage built with complementary MOS-FETs. An integrated amplifier with high level input selection and volume level adjustment. The volume setting features an ultra-precision gain-control relay circuitry, adjustable in 1dB per step with a total range of 75dB. The main amplifier case is made from rigid and resonance-free acrylic glass instead of other highly resonant metal material. The Emitter I sounds extremely smooth, open and very detailed and is also much more stable under extreme listening conditions! Specifications: Maximum RMS output power 20Hz-20kHz, 0.1% distortion, both channels driven: 140W/ch into 8 ohms, 250W/ch into 4 ohms, 450W/ch into 2 ohms, 600W/ch into 1 ohm. Damping factor: greater than 600. Input impedance: 22k ohms unbalanced inputs, balanced 10k ohms or 1k ohms switchable. Input sensitivity (for 150W into 8 ohms): level “61” = 2.0V; level “76” = 400mV. Voltage Gain: up to 28dB in position “1”, up to 43dB in position “2”, depending on volume setting. Signal/Noise Ratio: >90dB (at 1W/8 ohms). (7) Inputs: 1 x balanced (CD2) and 6 x unbalanced (Phono, CD1, Tuner , Video, Digital tuner and Direkt - should be used when you use only one signal source). (2) unbalanced outputs: 1 x Pre-out and 1 x subwoofer. |
|
