DESCRIPTION |
|

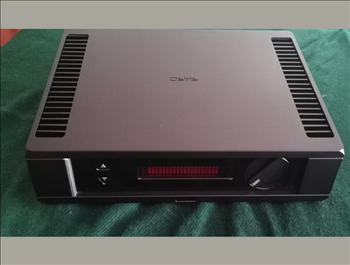

The dual mono Osiris is the culmination of 32 years experience in solid-state amplifier development. The Osiris uses a low distortion high linearity and a bandwidth common base voltage amplifier driver stage. Eight Sanken 200 W output transistors are used in a “triple” high current output stage enabling the Osiris to drive even the most awkward of speaker systems with ease. Nichicon audio grade capacitors are used in bypass and de-coupling positions. The Osiris uses two low noise, purpose designed 400 VA toroidal transformers using high-grade, fully bonded core material. Technical specifications: Power output: 162 watts per channel into 8 ohms, 250 watts into 4 ohms. Gain: 44dB. Record Output: 215 mV into 100 k. Frequency response: 10 Hz (-1.7 dB point). THD and Noise: < Less than 0.05%. (7) Inputs: 1 x balanced (XLR), 4 x unbalanced (RCA), 1 x Direct input (RCA/ external preamplifier or multi channel) and 1 x Record input (RCA). (1) Record output (RCA).
|
|
