DESCRIPTION |
|

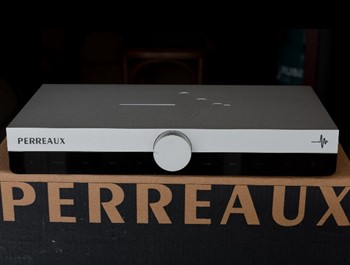

A breed of integrated amplifier that takes the word integration very seriously, the 80i is a true “hub” integrated, enriched with an abundance of inputs to support three generations of formats, specifically a phono stage for moving-magnet cartridges, an input for a CD player, optical and transformer coupled coaxial digital inputs for other digital sources, and an upsampling asynchronous USB DAC for music stored on a computer. 80i uses ESS Technology's Reference Sabre ES9006 DAC. It has a class A/B amplifier with a massive high-current toroidal power supply, and features MOSFET output devices. The Audiant 80i reproduces music with a sense of ease and honesty, and it is essentially neutral and with a percussive attack. Specifications: Amplifier Section: Power Output: 80W into 8O and 130W into 4O. Damping Factor: 400 @ 1kHz, ref. 8O. Gain: 28dB. Preamplifier Section: (4) Analogue Inputs: 3 x single-ended (RCA – Disc, Aux and Home Theatre) and 1 x Phono (RCA). (2) Analogue Outputs. 1 x Pre Out (RCA) and 1 x Line Out (RCA). Analogue Output Impedance: Pre-Out: 540 Ohm; Line Out: 270 Ohm. Volume Control Range: -90.0dB to +6.0dB. Digital Audio Section: (4) Digital Inputs: 1 x USB (asynchronous 24/96), 1 x Coaxial (RCA), 2 x Optical (Toslink). Input Word Length (maximum): 24-bit (all inputs). Input Sample Rate (maximum): 96kHz (all inputs). DAC Output Voltage: 1.95Vrms @ 0dBFS. Signal to Noise Ratio (A-weighted): 120dB, ref. 0dBFS. Phono Stage: Gain: 40dB. Input Impedance: 47 kOhm. Input Capacitance: 100pF. |
|
